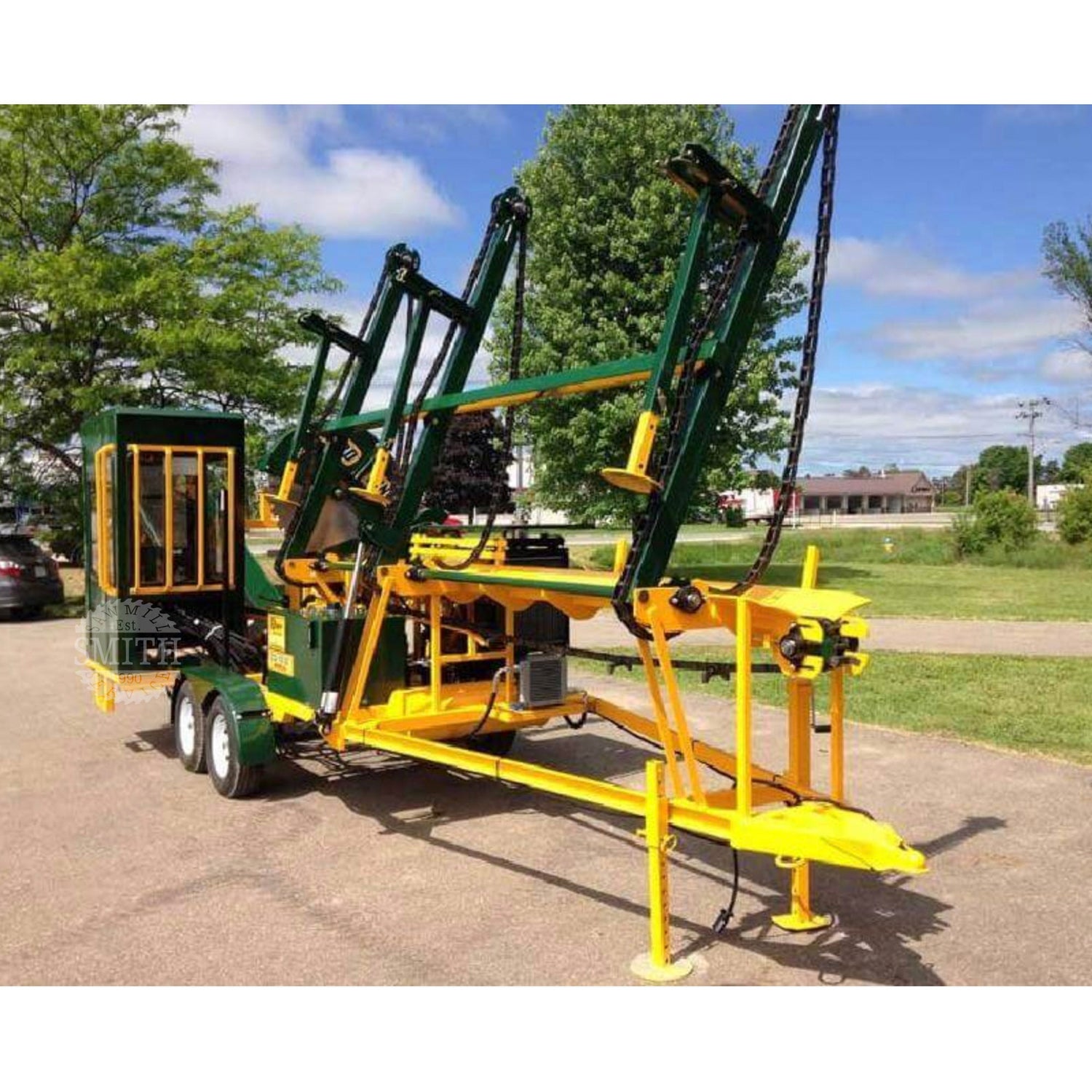

CORD KING CS 18-30 (MODEL 40)
-
CORD KING CS 18-30 (MODEL 40) SPECS
• 50 HP Diesel Engine - Interim Tier 4
• 36” carbide tooth slasher saw
• Splitter Force 29 ton
• 6- or 8-way fixed splitting wedge
• 16' in feed with 3-leg live deck
• Hydraulic log stop adjustable 12-24" length
• Operator platform with deluxe seat
• Automatic clamping
• Fuel Capacity: 20-gallon fuel tank
• Hydraulic Reservoir Capacity: 55 US gallons
• Hydraulic Oil Cooler Standard: 35,000 BTU/hr
• 10k lbs tandem axles with electric brakes and running lights
• 2 5/16″ Ball Hitch
-
CORD KING CS 18-30 (MODEL 40) PERFORMANCE
• Production Rate: up to 4 full cords/hr
• Cycle Time (Cut and Split): every 3.5 seconds
• Maximum Log Diameter: 16"
• Maximum Log Length: 30' (butt on the deck)
• Estimated Fuel Consumption: 1.5 GPH
• Weight: 9,000 lbs
• Transport Dimensions: 8'-0" wide, 12'-0" high
-
CORD KING CS 18-30 (MODEL 40) OPTIONAL EQUIPMENT
• 34-ton splitter (required for 8-way wedge)
• 42-ton splitter (required for 10- or 12-way wedge)
• Hydraulically adjustable wedge
• Quick change hydraulically adjustable box wedge 10 to 12-way split
• Hydraulic Folding Log Deck
• Extended in feed conveyor to 20′
• Extra live deck legs, dual drive available
• Trap doors for last piece assist (easy end-of-log cutting)
• Operator safety cage
• Heated operators cab
• Air conditioning (hydraulically driven or 120V plug in)
• 24' to 40' standalone off loading conveyor (radial stacking)
• 12' or 16' integrated offloading conveyor
• Overhead log grapple assist (crooked wood)
-
