ND 340 ROBOT SYSTEM
-
FOR SHARPENING UP TO 340 CIRCULAR SAW BLADES
For all companies which would like to machine circular saw blades extremely efficiently and productively with low staffing – without compromising the quality of the results – VOLLMER offers the ideal automation solutions. For unstaffed machining of tooth faces, tooth tops and side angles in production and servicing. Around the clock.
With its tried-and-tested ND handling system in combination with convenient data input, you benefit from maximum flexibility.
This symbol indicates that a machine is already ideally set up for connection to a robot system and is therefore the first choice for fully automated complete machining.

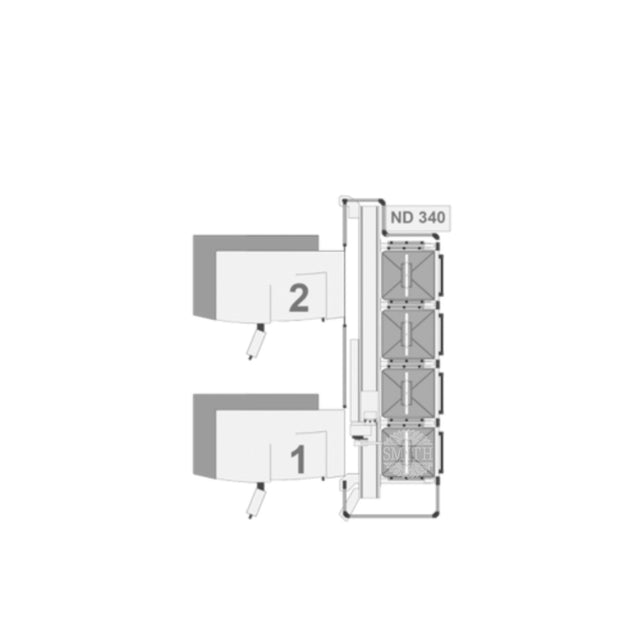

With four CNC-controlled axes. With double gripper and four loading carriages. To load a sharpening machine automatically with up to 350 circular saw blades.
Circular saw blade external diameter: 200 to 840 mm
-
VOLLMER ND 340 SPECS
WORKPIECE DATA ND 340
CIRCULAR SAW BLADES Circular saw blades outside diameter 200 - 840 mm WORKPIECE HANDLING Stack height < 300 mm INTERFACES Electrical connected load 2,1 kVA Pneumatic pressure 0,6 - 1 MPa (6 - 10 bar)
